| Product Model | MGJZ40 | MGJZX40 |
|---|---|---|
| Rated Lifting Weight(t) | 40（Under Hoisting Device） | 40（Under Hoisting Device） |
| Rail Torque(m) | 35 | 35 |
| Effective cantilever(m) | 8.7（Both Sides） | 8.7（Both Sides） |
| Lifting Height(m) | 16.5 | 12.5 |
| Crane Working Level | M7 | M7 |
| Max lifting Velocity(m/min) | 15 | 15 |
| Gantry Traveling Velocity(m/min) | Full Load≥35 | Full Load≥40 |
| Trolley Traveling Velocity(m/min) | Full Load≥55 | Full Load≥50 |
| Slewed Trolley Velocity(round per minute) | no | 1.5～2 |
| Max Wheel Pressure（In the Worst Working Condition ）(t) | ≤20 | ≤25 |
| Anti-shaking Device | Flexible Anti-shaking | Flexible Anti-shaking |
| Hoisting Device | 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility | 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility |
| Power Supply | 3-Phase 4Line Lead Power Supply: 380v 50Hz | 3-Phase 4Line Lead Power Supply: 380v 50Hz |
| Environment Temperature | -10℃ —+ 45℃ | -10℃ —+ 45℃ |
| Max Relative Humidity | 90% | 90% |

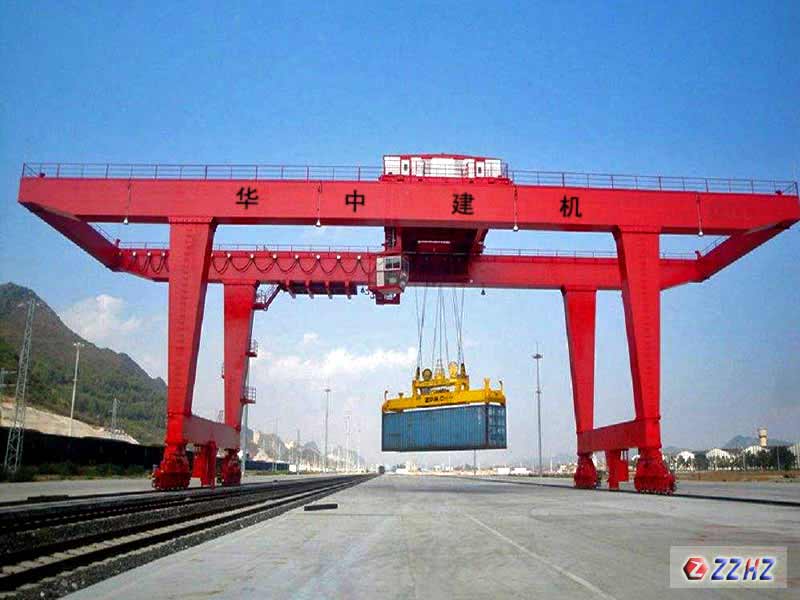

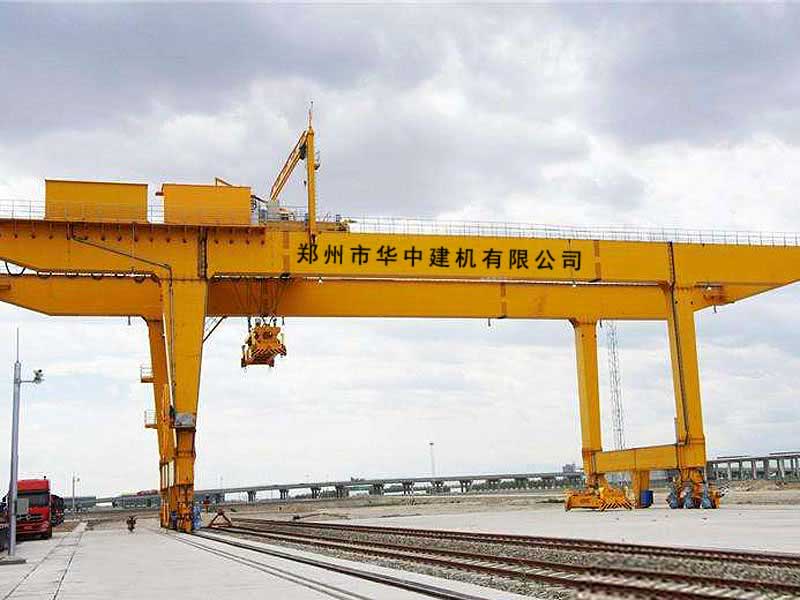

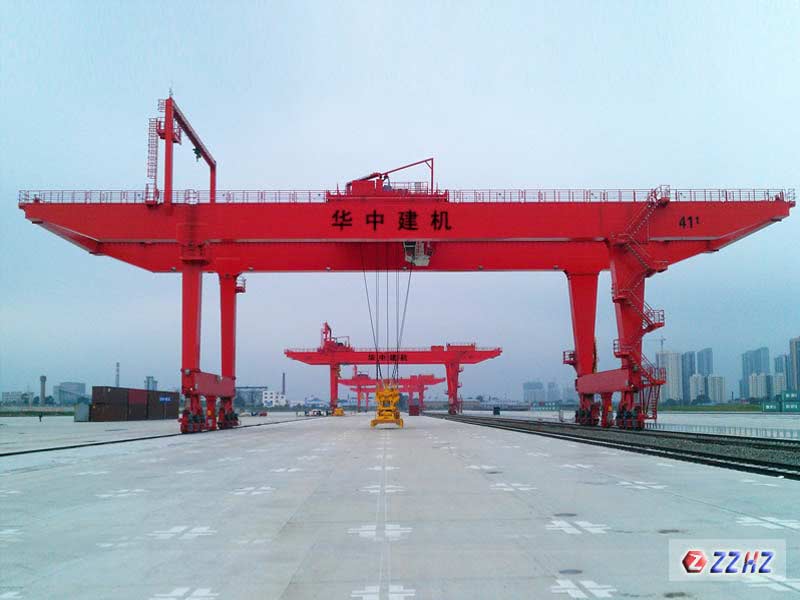

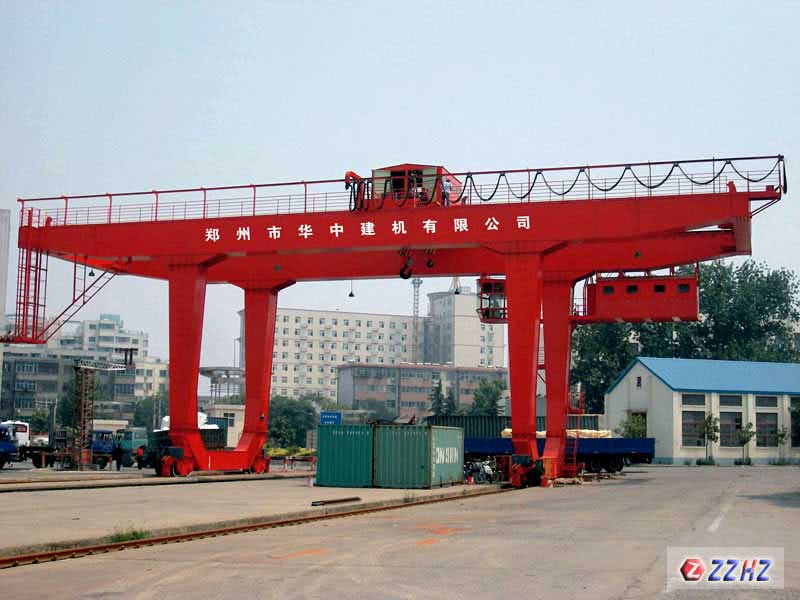

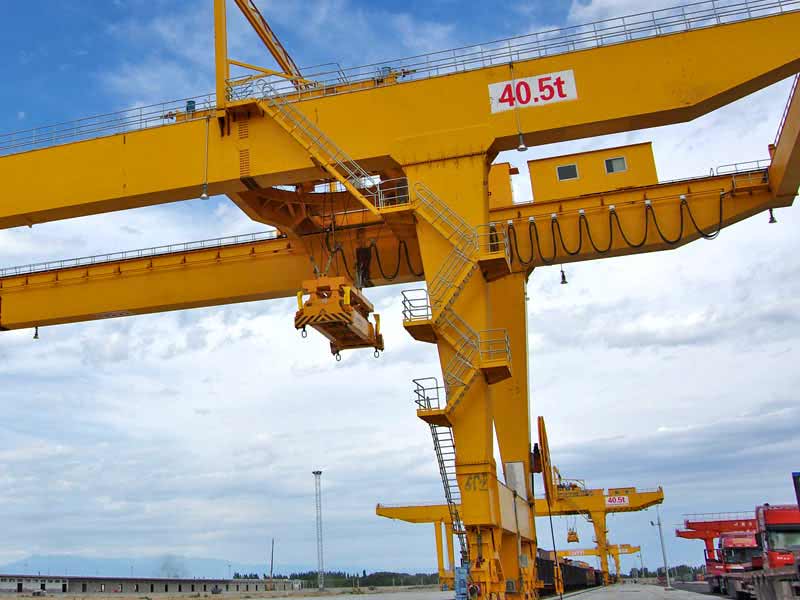

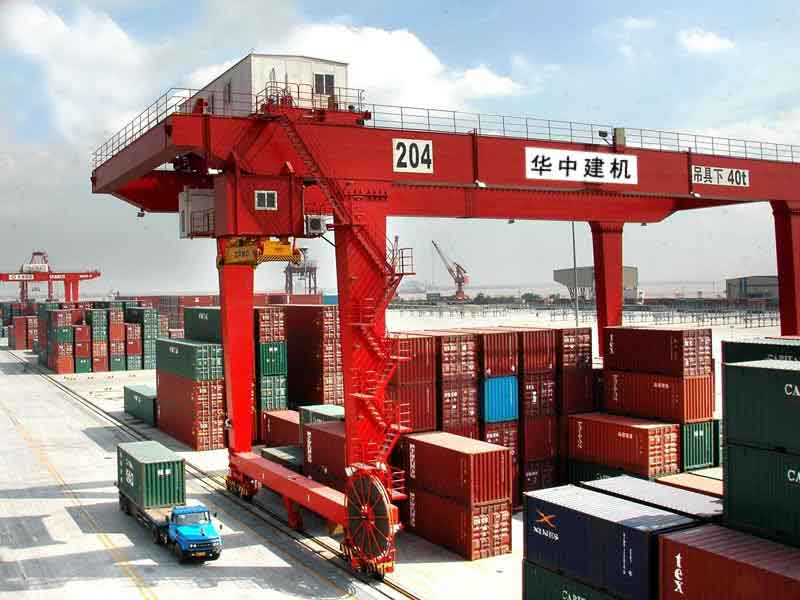

የባቡር ሃዲድ ዓይነት ቃዎችን የሚያነሳ ዕቃ ማንሻ በዋናነት ለመጫን፣ ለማውረድ፣ ለመያዝ እና ዕቃዎን በባቡር ሃዲድ ማያዣ በመርከብ መተላለፊያ ቦታ ላይ እና በረጅም የዕቃ መያዣ ማከማቻ ቦታ ላይ ለመከመር ጥቅም ላይ ይውላል። ዕቃ ማንሻው በተዘረጋው ሃዲድ መስመሮች ላይ ይጓዛል።
1, የእንቅስቃሴ እና ፍጥነት ከፍተኛ ነው.
2, በሁለቱም በኩል በጣሪያዎች በኩል የክዋኔው መጠን ሰፊ ነው.
ሙቀት：-20°C-50°C ነፋስ：≤ከ 8 ክፍል
